External Wall Solutions

Designed to stop the weather, cold air and moisture, coming into the building. Our products are designed to work on the cold side of the building envelope. Engineered to allow water vapour to escape inside the building to reduce the condensation risk, we have a product to suit all requirements.


Window Sealing

Our interactive image shows how each building element is sealed to create an airtight and vapour-open construction. illbruck’s high performance building protection range offers a range of fully compatible adhesives, tapes and membranes which provide flexibility in application and peace of mind with the window membrane interfaces.

Benefits of our products:

  • Full weather proofing
  • Airtightness
  • Controlled vapour permeability
  • Elimination of cold bridging

Cladding Trims

illbruck’s’ impregnated and laminated tapes offer excellent solutions for creating flexible yet long lasting external weather seals. The unique composition of these products allows them to conform to panel contours, whilst providing an effective seal to substrates that will be subject to movement during transportation.

Combined with our hybrid polymer adhesive technology, Tremco CPG UK offers a combined bonding and sealing option for external trims, which also offers enhanced aesthetics.

Benefits of our products:

  • Flexible and long-lasting weather seals
  • Seals adapt to to contoured and profiled panels
  • Seals accommodate movement, expansion, and contraction

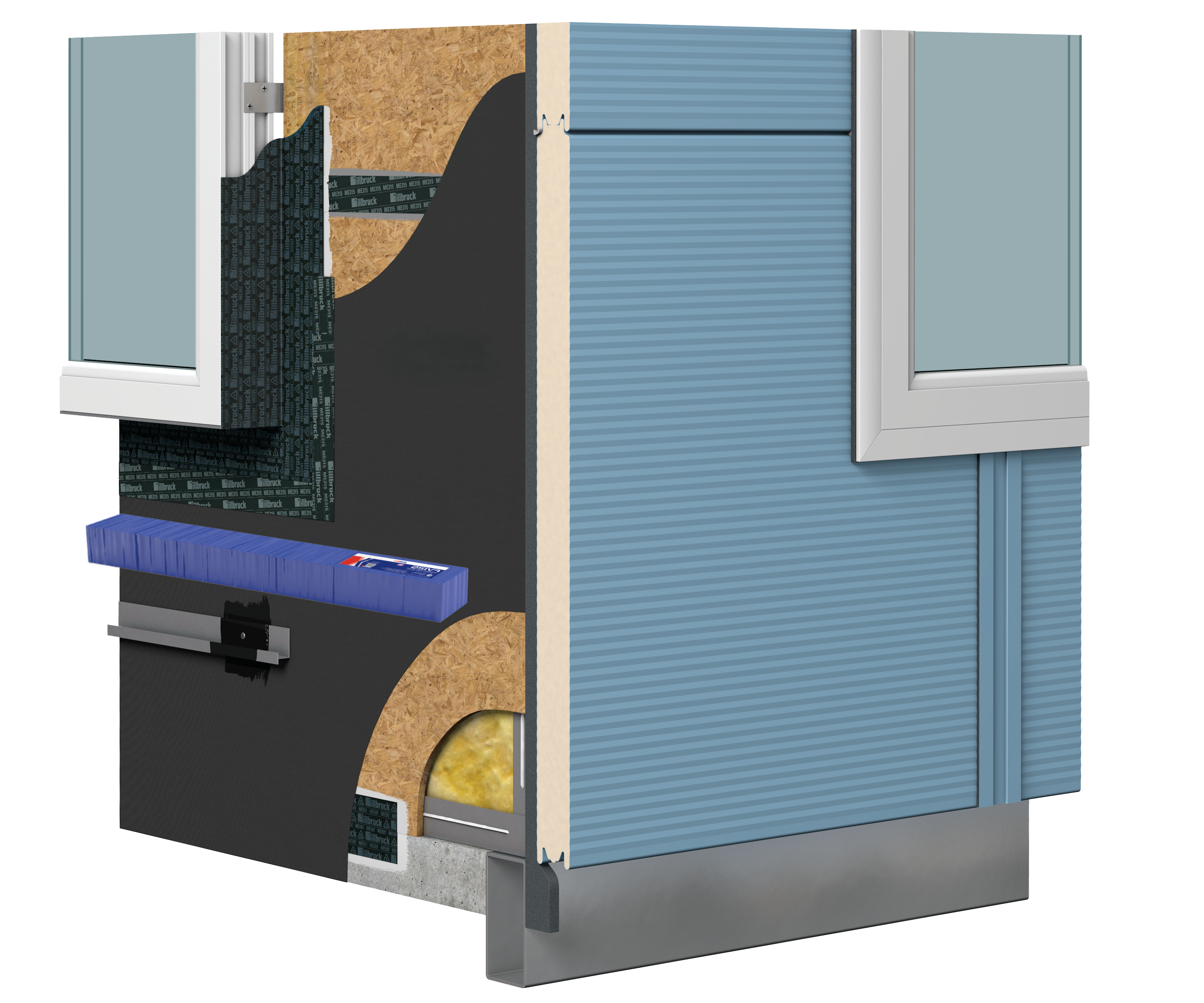

The illustration below highlights commonly used CPG UK products but is by no means exhaustive. Many other products are available to meet differing applications and performance criteria. Get in touch today for more information.

AT140 Primer for Porous Substrates
AT140 is a surface primer for use on porous substrates, such as concrete, prior to application of illbruck SP hybrid sealants and adhesives.
AT140 Primer for Porous Substrates
AT150 Primer for Non-Porous Substrates
AT150 is a primer for non-porous substrates to improve adhesion of illbruck hybrid sealants and adhesives.
AT150 Primer for Non-Porous Substrates
ME315 Total Protection Tape
ME315 is a special tape with solvent free modified acrylic dispersion adhesive.
ME315 Total Protection Tape
ME316 Endurance Tape
ME316 is a special tape consisting of polypropylene fleece with waterproof solid adhesive.
ME316 Endurance Tape
ME220 EPDM Membrane
ME220 is an EPDM-based membrane used for sealing interfaces to provide airtight or weather tight seals.
ME220 EPDM Membrane
ME501 Duo Window Membrane HD
ME501 is a high strength, tear resistant membrane made from polyethylene copolymer film with non-woven fabric.
ME501 Duo Window Membrane HD
SP925 Air Seal
SP925 is a one-component, low-viscosity sealant based on hybrid polymer technologies.
SP925 Air Seal
ME009 Breather Membrane UV - Wide Format
ME009 is a wide format breathable membrane made from non-woven water-repellent polypropylene with a special UV coating.
ME009 Breather Membrane UV - Wide Format
TP600 Compriband - illmod 600 Foam Tape
TP600 is a soft and flexible open cell polyurethane foam, impregnated with an acrylic based, UV stabilised resin.
TP600 Compriband - illmod 600 Foam Tape
FA600 Frame Silicone
FA600 cures rapidly to form a permanently flexible and extremely durable watertight seal. It is designed for sealing glazing applications, window and door perimeters, display cases, conservatories and greenhouses.
FA600 Frame Silicone
SP150 High Tack Hybrid Adhesive
SP150 provides a high strength flexible bond in a wide variety of construction and industrial applications.
SP150 High Tack Hybrid Adhesive
FV125 Large Ventilated Cavity Barrier
FV125 Large Ventilated Cavity Barrier is a specially formulated fire rated rock mineral fibre section with an integral high expansion intumescent seal attached to the leading edge, suited to an open state cavity with a maximum air gap of 25 mm.
FV125 Large Ventilated Cavity Barrier
ME050 FR Breather Membrane (ALU)
ME050 FR Breather Membrane (ALU) is a reflective breather membrane which is Class A2-s1, d0 in accordance with EN 13501-1 and water resistant to Class W1 in accordance with EN 13859-2.
ME050 FR Breather Membrane (ALU)
ME055 FR Breather Membrane (White)
ME055 FR Breather Membrane (White) is a non-combustible and highly vapour permeable breather membrane which is Class A1 in accordance to EN 13501-1 and water resistant to Class W2 in accordance with EN 13859-2.
ME055 FR Breather Membrane (White)
ME355 FR Sealing Tape (Alu)
Self adhesive and reinforced tape with an aluminum face, used to bond and seal membrane joints and overlaps to create a Class A2-s1, d0 system with defined illbruck membranes.
ME355 FR Sealing Tape (Alu)
ME356 FR Sealing Tape (White)
Self adhesive and reinforced tape with a white glass cloth face, used to bond and seal membrane joints and overlaps to create a Class A1 system solution with defined illbruck membranes.
ME356 FR Sealing Tape (White)
ME010 FR Window & Door Sealing Membrane
FR Window & Door Sealing Membrane (ME010) is a Class B permanently UV resistant, high strength polyester, airtight and fully watertight membrane used as a perimeter membrane seal to the external side of glazed units such as windows and doors.
ME010 FR Window & Door Sealing Membrane
SP025 Fire Membrane Adhesive
SP025 Fire Membrane Adhesive is chemically neutral and low odour during and after curing. When tested to EN13501-1 with ME010 Façade UV & Fire Membrane, the system achieves Class B-s1, d0 (Reaction to fire).
SP025 Fire Membrane Adhesive
